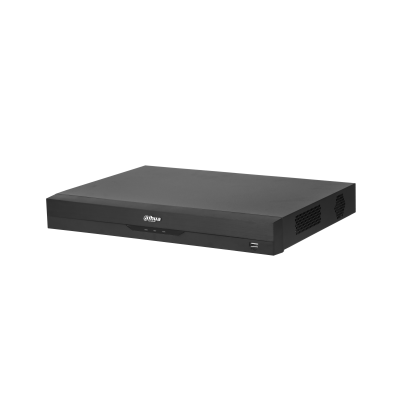

Dahua XVR4216AN-I — 16 Channel Penta-brid 720P 1U 2HDDs WizSense Digital Video Recorder

Características principales

• H.265+/H.265 video compression
• > Supports Full-channel AI-Coding
• > Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• > Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
• > Long transmission distance over coax cable
• > Up to 8 channels video stream ( analog channel ) SMD Plus
• > Supports 2 SATA HDD, up to 10 TB
• System
• Main Processor
• Embedded processor
• Operating System
• Embedded linux
• SMD Plus
• Performance
• 8 channels
• AI Search
• Search by target classification (Human, Vehicle)
• Video and Audio
• Analog Camera Input
• 16 channels, BNC
• HDCVI Camera
• 1080p@ 25/30 fps, 720p@ 25/30 fps
• AHD Camera
• TVI Camera
• CVBS Camera
• PAL/NTSC
• IP Camera Input
• 16+2/16 channels, each channel up to 6MP
• Audio In/Out
• 1/1, RCA
• Two-way Talk
• Reuse audio in/out, RCA
• Recording
• Video Compression
• AI Coding/H.265+/H.265/H.264+/H.264
• Resolution
• 1080N; 720p; 960H; D1; CIF
• Record Rate
• Main Stream:
• the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps) ; 960H/D1/CIF (1 fps–25/30 fps)
• Sub steram:
• CIF(1 fps–7 fps)
• Bit Rate
• 32 kbps–4096 kbps per channel
• Record Mode
• Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
• Record Interval
• 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec
• Audio Compression
• G.711A, G.711U, PCM
• Audio Sample Rate
• 8 KHz, 16 bit per channel
• Audio Bit Rate
• 64 kbps per channel
• Display
• Interface
• 1 HDMI; 1 VGA
• Resolution
• 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display
• When IP extension mode not enabled : 1/4/8/9/16
• When IP extension mode enabled : 1/4/8/9/16
• OSD
• Camera title; Time; Video loss; Camera lock; Motion detection; Recording
• Network
• Interface
• 1 RJ-45 Port (100 MB)
• Network Function
• HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G ; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
• Max. User Access
• 128 users
• Smart Phone
• iPhone; iPad; Android
• Interoperability
• ONVIF 16.12, CGI Conformant
• Video Detection and Alarm
• Trigger Events
• Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection
• Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm input
• N/A
• Relay Output
• N/A
• Playback and Backup
• Playback
• 1/4/9/16
• Search Mode
• Time/Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function
• Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
• Backup Mode
• USB Device/Network
• Storage
• Internal HDD
• 2 SATA ports, up to 10 TB capacity
• eSATA
• N/A
• Auxiliary Interface
• USB
• 2 USB ports (USB 2.0)
• RS232
• N/A
• RS485
• 1 port, for PTZ control
• Electrical
• Power Supply
• DC 12V/4A
• Power Consumption
• (without HDD)
• < 10W
• Construction
• Dimensions
• 1U, 375.0 mm × 289.4 mm × 53.0 mm
• (14.76″ × 11.39″ × 2.09″)
• Net Weight
• (without HDD)
• 1.61 kg (3.55 lb)
• Gross Weight
• 2.86 kg(6.30 lb)
• Installation
• Desktop installation
• Environmental
• Operating Conditions
• -10°C to +55°C (+14°F to +131°F), 10%–90% (RH)
• Storage Conditions
• -20°C to +70°C (-4°F to +158°F) , 0%–90% (RH)
• Third-party Support
• Third-party Support
• Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
• Certifications
• Certifications
• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
• UL: UL 60950-1
• Datasheet – PDF
