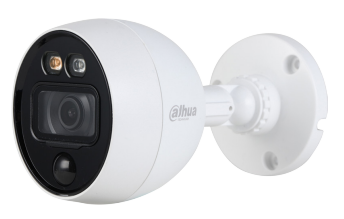

Dahua ME1200BP-LS — 2MP HDCVI Active Deterrence Camera

Características principales

• HD and SD output switchable
• 2.8mm/3.6mm fixed lens
• 10m/110°detecting range/angle
• Max. IR length 20m, Smart IR
• IP67, DC12V
• Technical Specification
• Camera
• Image Sensor 1/2.7″ CMOS
• Effective Pixels 1920(H)×1080(V), 2MP
• Scanning System Progressive
• Electronic Shutter Speed PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s
• Minimum Illumination 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on
• S/N Ratio More than 65dB
• IR Distance Up to 20m (66feet)
• IR On/Off Control Auto / Manual
• IR LEDs 1
• Lens
• Lens Type Fixed lens / Fixed iris
• Mount Type Board-in
• Focal Length 2.8mm (3.6mm Optional)
• Max Aperture F2.0
• Angle of View H: 112° (88°)
• V: 59° (47°)
• Focus Control N/A
• Close Focus Distance 500mm(900mm)
• 20»(35»)
• DORI Distance
• Note: The DORI distance is a “general proximity” of distance which makes it easy to
• pinpoint the right camera for your needs. The DORI distance is calculated based on
• sensor specification and lab test result according to EN 62676-4 which defines the
• criteria for Detect, Observe, Recognize and Identify respectively.
• DORI
• Definition Distance
• Detect 25px/m
• (8px/ft)
• 2.8mm: 37m(122ft)
• 3.6mm: 53m(175ft)
• Observe 63px/m
• (19px/ft)
• 2.8mm: 15m(49ft)
• 3.6mm: 21m(70ft)
• Recognize 125px/m
• (38px/ft)
• 2.8mm: 8m(25ft)
• 3.6mm: 11m(35ft)
• Identify 250ppm
• (76px/ft)
• 2.8mm: 4m(12ft)
• 3.6mm: 5m(17ft)
• Pan / Tilt / Rotation
• Pan/Tilt/Rotation
• Pan: 0° ~ 360°
• Tilt: 0° ~ 90°
• Rotation: 0° ~ 360°
• Video
• Resolution 1080P (1920×1080)
• Video Output 1-channel BNC high definition video output / CVBS
• video output (Can switch)
• Day/Night Auto (ICR) / Manual
• OSD Menu Multi-language
• BLC Mode BLC / HLC / DWDR
• WDR DWDR
• Gain Control AGC
• Noise Reduction 2D
• White Balance Auto / Manual
• Smart IR Auto / Manual
• PIR
• Detection Passive infrared
• Detection Range 10m, 110°
• Alarm Prompt White light
• White Light Mode Alert/Lighting
• Installation height Defualt bracket, wall mount, 2.2-3m
• Certifications
• Certifications
• CE (EN55032, EN55024, EN50130-4)
• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
• Interface
• Audio Interface N/A
• Eelectrical
• Power Supply 12V DC ±30%
• Power Consumption Max 4.3W (12V DC, IR on)
• Environmental
• Operating Conditions -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
• * Start up should be done at above -10°C (14°F)
• Storage Conditions -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
• Ingress Protection &Vandal
• Resistance IP67
• Construction
• Casing Aluminium (Front cover) + Plastic (Rear Barrel)
• Dimensions 146.6mm×72.4mm×83mm (5.77″×2.85″×3.27″)
• Net Weight 0.23kg (0.51lb)
• Gross Weight 0.30kg (0.66lb)
