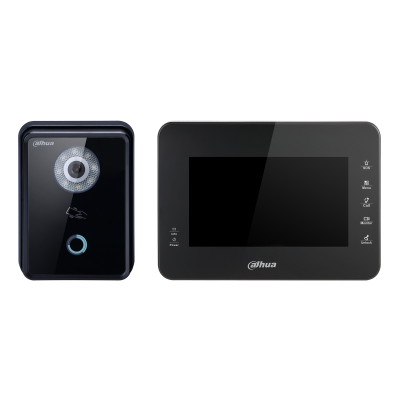

Dahua KIT-6210B-1560B — Kit video portero IP

Características principales

• Video Outdoor Station
• Model
• VTO6210B
• System
• Main Processor
• Embedded Micro Processor
• Operation System
• Embedded LINUX OS
• Video
• Video Compression
• H.264
• Image Sensor
• 1/4” 1MP CMOS
• Lens
• 3.6mm
• Angle of View
• D:70° H:60°
• Day/Night
• Color Image
• Audio
• Audio Compression
• G.711
• Audio Input
• Omnidirectional Mic
• Audio Output
• Built-in Speaker
• Bidirectional Talk
• Support Dual-way Bidirectional talk
• Operation Mode
• Keypad
• Single Touch Button
• Reader
• Mifare Card
• Interface
• Door Control
• 2(1 relay out for main lock, 1 extended by access control module)
• Alarm In
• 2(1ch unlock button, 1ch feedback)
• RS485
• 1
• Network
• Ethernet
• 10M/100Mbps Self-adaptive
• Network Protocol
• TCP/IP
• General
• Ingress Protection
• IP65
• Tamper Switch
• 1
• Installation
• Surface
• Material
• Tempered Glass
• Power
• DC 12V, or supply directly by VTNS1060A
• Power Consumption
• Standby =1W, Work =10W
• Working Temperature
• ?30°C~+60°C
• Relative Humidity
• 10%~90%RH
• Dimensions
• 154.2mm×114.2mm×43.0mm
• Weight
• 0.6Kg
• Video Indoor Monitor
• Model
• VTH1560B
• System
• Main Processor
• Embedded Micro Process
• Operation System
• Embedded LINUX OS
• Video
• Video Compression
• H.264
• Audio
• Audio Compression
• G.711
• Audio Input
• All-direction Microphone
• Audio Output
• Built-in Loudspeaker
• Bidirectional Talk
• Support Dual-way Bidirectional talk
• Display
• LCD Screen
• 7“ 800×480, Capacitive
• Operation Mode
• Input
• Touch buttons
• Interface
• Alarm In
• 8
• Network
• Ethernet
• 10M/100Mbps Self-adaptive
• Network Protocol
• TCP/IP
• General
• Memory Slot
• Micro SD embedded, 4G
• Installation
• Flush
• Power
• DC 12V, or supply directly by VTNS1060A
• Power Consumption
• Standby =1.5W , work=7W
• Working Temperature
• -10°C~+55°C
• Relative Humidity
• 10%~90%RH
• Dimensions
• 221.2mm×154.3mm×24.2mm
• Weight
• 0.8Kg
