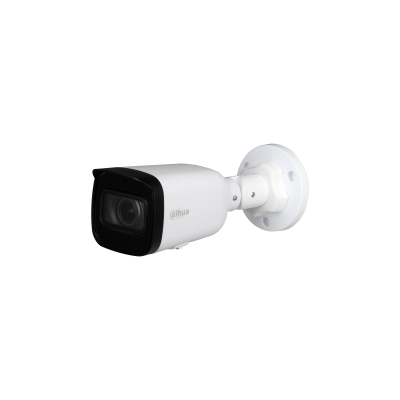

Dahua IPC-HFW1230T1P-ZS — 2MP Entry IR Vari-focal Bullet Network Camera

Características principales

• > 2MP 1/2.8″ CMOS image sensor, low luminance, and high definition image
• > H.265 codec, high compression rate, ultra-lowbitrate.
• > Outputs max. 2MP (1920 × 1080)@25/30 fps.
• > Rotation mode, WDR, 3D NR,HLC, BLC, digitalwatermarking, applicable to various monitoring scenes.
• > Supports max. 256GB SD card.
• > Built-in IR LED, and the max. illumination distance is 50m
• >12V DC/PoE power support
• > IP67
• Camera
• Image Sensor
• 1/2.8” 2Megapixel progresive CMOS
• Effective Pixels
• 1920(H) x1080(V)
• RAM/ROM
• 128MB/16MB
• Scanning System
• Progressive
• Electronic Shutter Speed
• Auto/Manual, 1/3~1/100000s
• Minimum Illumination
• S/N Ratio
• More than 56dB
• IR Distance
• 50 m (164.04 ft) (IR)
• IR On/Off Control
• Auto/ Manual
• IR LEDs
• 2
• Lens
• Lens Type
• Motorized vari-focal
• Mount Type
• φ14
• Focal Length
• 2.8 mm–12 mm
• Max. Aperture
• F1.7
• Angle of View
• Horizontal: 101°–33.5°; Vertical: 52.5°–19°; Diagonal: 125°–38.5°
• Focus Control
• Fixed
• Close Focus Distance
• 1.2 m (3.94 ft)
• DORI Distance
• Lens
• Detect
• Observe
• Recognize
• Identify
• W
• 48 m (157.48 ft)
• 19 m (62.34 ft)
• 10 m ( 32.81 ft)
• 5m (16.40 ft)
• T
• 131 m (429.79 ft)
• 52 m (170.60 ft)
• 26 m ( 85.30 ft)
• 13m (42.65 ft)
• PTZ
• Pan/Tilt Range
• Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
• Intelligence
• Event Trigger
• Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
• IVS
• NA
• Video
• Compression
• H.265; H.264; H.264B; MJPEG (Only supported by the sub stream
• Smart Codec
• Smart H.265+; Smart H.264+
• Streaming Capability
• 2 Streams
• Resolution
• 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240
• Frame Rate
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Bit Rate Control
• CBR/VBR
• Bit Rate
• H.264: 32 kbps–6144 kbps
• H.265: 12 kbps–6144 kbps
• Day/Night
• Auto(ICR) / Color / B/W
• BLC Mode
• BLC / HLC / DWDR
• White Balance
• Auto/Natural/Street Lamp/Outdoor/Manual/Regional custom
• Gain Control
• Auto/Manual
• Noise Reduction
• 3D DNR
• Motion Detection
• Off / On (4 Zone, Rectangle)
• Region of Interest
• Off / On (4 Zone)
• Electronic Image
• Support
• Smart IR
• Support
• Digital Zoom
• 16x
• Flip
• 0°/90°/180°/270°
• Mirror
• Off / On
• Privacy Masking
• Off / On (4 Area, Rectangle)
• Audio
• Compression
• N/A
• Network
• Ethernet
• RJ-45 (10/100Base-T)
• Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS
• Interoperability
• ONVIF (Profile S/Profile T); CGI; P2P; Milestone
• Streaming Method
• Unicast / Multicast
• Max. User Access
• 6
• Storage
• FTP; Micro SD card (Support max. 256 G)
• Web Viewer
• IE, Chrome, Firefox
• Management Software
• Smart PSS, DSS, DMSS
• Smart Phone
• IOS, Android
• Certifications
• Certifications
• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive
• 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• Interface
• Video Interface
• N/A
• Audio Interface
• N/A
• RS485
• N/A
• Alarm
• N/A
• Electrical
• Power Supply
• 12V DC/PoE (802.3af)
• Power Consumption
• Basic: 1.6W (12 V DC); 2.3W (PoE) Max. (H.265 + ICR + IR intensity): 4.3 W (12V DC); 5.5 W (PoE)
• Environmental
• Operating Conditions
• –30 °C to +60 °C (–22 °F to 140 °F)
• Storage Conditions
• -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
• Ingress Protection
• IP67
• Vandal Resistance
• N/A
• Construction
• Casing
• Metal+Plastic
• Dimensions
• 243.5 mm × Ø90.7 mm (9.59″ × Ø3.57″)
• Net Weight
• 0.43 kg (0.95 lb)
• Gross Weight
• 0.68 kg (1.50 lb)
