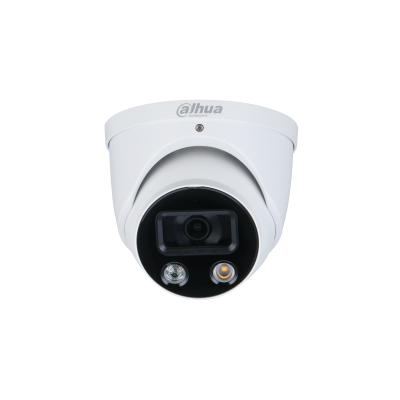

Dahua IPC-HDW3249H-AS-PV — Dahua IP Domo 2MP FullColor TioC

Características principales

• Camera
• Image Sensor
• 1/2.8”2Megapixel progressive CMOS
• Max. Resolution
• 1920 (H) × 1080 (V)
• ROM
• 128 MB
• RAM
• 512 MB
• Scanning System
• Progressive
• Electronic Shutter Speed
• Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination
• 0.0015 Lux @F1.0
• S/N Ratio
• > 56 dB
• Illumination Distance
• 30 m (98.4 ft)
• Illuminator On/Off Control
• Auto/Manual
• Illuminator Number
• 1 (Warm light)
• Pan/Tilt/Rotation Range
• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°
• Lens
• Lens Type
• Fixed-focal
• Mount Type
• M12
• Focal Length
• 2.8 mm; 3.6 mm
• Max. Aperture
• F1.0
• Field of View
• 2.8 mm: Horizontal 107° × Vertical 55° × Diagonal 127°
• 3.6 mm: Horizontal 84° × Vertical 44° × Diagonal 99°
• Iris Type
• Fixed
• Close Focus Distance
• 2.8 mm: 0.8 m (2.6 ft)
• 3.6 mm: 1.5 m (4.9 ft)
• DORI Distance
• Lens
• Detect
• Observe
• Recognize
• Identify
• 2.8 mm
• 46.5 m
• (152.6 ft)
• 18.6 m
• ( 61.0 ft)
• 9.3 m
• (30.5 ft)
• 4.6 m
• (15.1 ft)
• 3.6 mm
• 55.2 m
• (181.1 ft)
• 22.1 m
• (72.5 ft)
• 11.0 m
• (36.1 ft)
• 5.5 m
• (18.0 ft)
• Professional, intelligent
• IVS (Perimeter Protection)
• Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
• Intelligent Search
• Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
• Video
• Video Compression
• H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec
• Smart H.265+/Smart H.264+
• Video Frame Rate
• Main stream: 1920 × 1080 @1-25/30 fps
• Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30 fps
• Third stream: 1920 × 1080 @1-25/30 fps
• Stream Capability
• 3 streams
• Resolution
• 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)240)
• Bit Rate Control
• CBR/VBR
• Video Bit Rate
• H.264: 32 kbps–8192 kbps
• H.265: 12 kbps–8192 kbps
• Day/Night
• Color/B/W
• BLC
• Yes
• HLC
• Yes
• WDR
• 120 dB
• Scene Self-adaptation (SSA)
• Yes
• White Balance
• Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control
• Auto/Manual
• Noise Reduction
• 3D NR
• Motion Detection
• OFF/ON (4 areas)
• Region of Interest (RoI)
• Yes (4 areas)
• Smart Illumination
• Yes
• Image Rotation
• 0°/90°/180°/270° (Support with 1080p resolution and lower)
• Mirror
• Yes
• Privacy Masking
• 4 areas
• Audio
• Built-in MIC
• Yes
• Audio Compression
• PCM; G.711a; G.711Mu; G.726; G.723
• Alarm
• Alarm Event
• No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
• Network
• Network
• RJ-45 (10/100 Base-T)
• SDK and API
• Yes
• Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Cyber Security
• Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability
• ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
• User/Host
• 20 (Total bandwidth: 80 M)
• Storage
• FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Browser
• IE: IE8 and later
• Chrome
• Firefox
• Safari: Safari 12 and later
• Management Software
• Smart PSS; DSS; DMSS
• Mobile Phone
• IOS; Android
• Certification
• Certification
• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• Port
• Audio Input
• 1 channel (RCA port)
• Audio Output
• 1 channel (RCA port)
• Alarm Input
• 1 channel in: 5mA 3V–5V DC
• Alarm Output
• 1 channel out: 300mA 12V DC
• Power
• Power Supply
• 12V DC/PoE (802.3af)
• Power Consumption
• Basic power consumption: 1.9W (12V DC); 2.55W (PoE)
• Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 6.1W (12V DC); 7.35W (PoE)
• Environment
• Operating Conditions
• –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
• Strorage Conditions
• –40°C to +60°C (–40°F to +140°F)
• Protection Grade
• IP67
• Structure
• Casing
• Metal
• Dimensions
• Φ122.0 mm × 110.9 mm (Φ4.8″ × 4.4″)
• Net Weight
• 754 g (1.7 lb)
• Gross Weight
• 915 g (2.0 lb)
