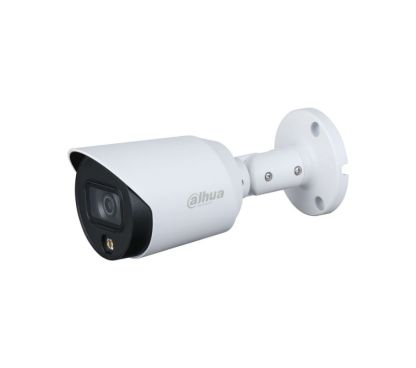

Dahua HFW1509CP-LED — Dahua DH-HAC-HFW1509CP-LED 5MP Full-color HDCVI Bullet Camera

Características principales

• 5MP Full-color HDCVI Bullet Camera
• * The parameters and datasheets below can only be applied to1509-S2 series.
• * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
• > 120 dB true WDR, 3D NR
• > 24/7 color imaging
• > 20 m illumination distance
• > CVI/CVBS/AHD/TVI switchable
• > 3.6 mm fixed lens
• > IP67, 12 V DC
• Camera
• Image Sensor
• 5MP CMOS
• Max. Resolution
• 2880 (H) × 1620 (V)
• Pixel
• 5MP
• Scanning System
• Progressive
• Electronic Shutter Speed
• PAL:1/3 s–1/100,000 s
• NTSC:1/4 s–1/100,000 s
• S/N Ratio
• > 65 dB
• Min. Illumination
• 0.001 Lux/F1.0, 0 Lux warm light on
• Illumination Distance
• 20 m (65.61 ft)
• Illuminator On/Off Control
• Auto; manual
• Illuminator Number
• 1
• Pan/Tilt/Rotation Range
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
• Lens
• Lens Type
• Fixed lens
• Mount Type
• M12
• Focal Length
• 3.6 mm
• Max. Aperture
• F1.0
• Field of View
• 3.6 mm: H: 88; V: 46°; D: 104°
• Iris Type
• Fixed iris
• Close Focus Distance
• 3.6 mm: 2.3 m (7.5 ft)
• DORI Distance
• Lens
• Detect
• Observe
• Recognize
• Identify
• 2.8 mm
• 67.4 m
• (212.3 ft)
• 27.0 m
• (88.6 ft)
• 13.5 m
• (44.3 ft)
• 6.7 m
• (22.0 ft)
• 3.6 mm
• 80.0 m
• (262.5 ft)
• 32.0 m
• (105.0 ft)
• 16.0 m
• (52.5 ft)
• 8.0 m
• (26.2 ft)
• Video
• Frame Rate
• CVI:
• AHD:
• TVI:
• CVBS:
• PAL: 960H;
• NTSC: 960H
• Resolution
• 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• BLC
• BLC/HLC/WDR/HLC-Pro
• WDR
• 120 dB
• White Balance
• Auto; manual
• Gain Control
• Auto; manual
• Noise Reduction
• 3D NR
• Smart Light
• Yes
• Mirror
• Off/On
• Privacy Masking
• Off/On (8 areas, rectangle)
• Certifications
• Certifications
• CE (EN55032, EN55024, EN50130-4,EN60950-1)
• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
• Port
• Video Output
• Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Power
• Power Supply
• 12 V ±30% DC
• Power Consumption
• Max 4.4 W (12 V DC, warm light on)
• Environment
• Operating Temperature
• –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
• Storage Temperature
• –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
• Protection Grade
• IP67
• Structure
• Casing
• Metal front cover + plastic main body + plastic bracket
• Camera Dimensions
• 161.3 mm × 69.7 mm × 70.0 mm (6.35″ × 2.75″ × 2.75″)
• Net Weight
• 0.23 kg (0.51 lb)
• Gross Weight
• 0.33 kg (0.73 lb)
