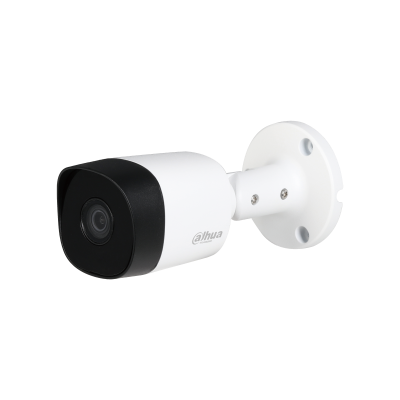

Dahua B2A21P-0360B — Cámara HDCVI Bullet 2MP lente fijo 3.6mm, exterior con IR

Características principales

• Camera
• Image Sensor
• 1/2.7″ CMOS
• Effective Pixels
• 1920(H)×1080(V), 2MP
• Scanning System
• Progressive
• Electronic Shutter Speed
• PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s
• Minimum Illumination
• 0.04Lux/F1.85, 30IRE, 0Lux IR on
• S/N Ratio
• More than 65dB
• IR Distance
• Up to 20m (66feet)
• IR On/Off Control
• Auto / Manual
• Lens
• Lens Type
• Fixed lens / Fixed iris
• Mount Type
• Board-in
• Focal Length
• 3.6mm (6mm Optional)
• Max Aperture
• F1.85
• Angle of View
• H: 93° (54.7°)
• Focus Control
• N/A
• Close Focus Distance
• 800mm (2000mm)
• 31.5» (78.74»)
• DORI Distance
• Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
• DORI
• Definition
• Distance
• Detect
• 25px/m
• (8px/ft)
• 3.6mm: 51m(167ft)
• 6mm: 80m(262ft)
• Observe
• 63px/m
• (19px/ft)
• 3.6mm: 20m(66ft)
• 6mm: 32m(105ft)
• Recognize
• 125px/m
• (38px/ft)
• 3.6mm: 10m(33ft)
• 6mm: 16m(52ft)
• Identify
• 250ppm
• (76px/ft)
• 3.6mm: 5m(17ft)
• 6mm: 8m(26ft)
• Pan/Tilt/Rotation
• Pan/Tilt/Rotation
• Pan: 0° ~ 360°
• Tilt: 0° ~ 90°
• Rotation: 0° ~ 360°
• Video
• Resolution
• 1080P (1920×1080)
• Frame Rate
• Video Output
• 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night
• Auto (ICR) / Manual
• OSD Menu
• Multi-language
• BLC Mode
• BLC / HLC / DWDR
• WDR
• DWDR
• Gain Control
• AGC
• Noise Reduction
• 2D
• White Balance
• Auto / Manual
• Smart IR
• Auto / Manual
• Certifications
• Certifications
• CE (EN55032, EN55024, EN50130-4)
• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• Interface
• Audio Interface
• N/A
• Eelectrical
• Power Supply
• 12V DC ± 30%
• Power Consumption
• Max. 2.7W (12V DC, IR on)
• Environmental
• Operating Conditions
• -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• * Start up should be done at above -40°C (-40°F)
• Storage Conditions
• -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• Ingress Protection & Vandal Resistance
• IP67
• Construction
• Casing
• Aluminium
• Dimensions
• 69.8mm×69.8mm×157.6mm (2.75″×2.75″×6.20″)
• Net Weight
• 0.25kg (0.55lb)
• Gross Weight
• 0.30kg (0.66lb)

Característica 1

Image Sensor

Característica 2

Effective Pixels

Característica 3

1920(H)×1080(V), 2MP

Característica 4

Scanning System

Característica 5

Electronic Shutter Speed

Característica 6

PAL: 1/25~1/100000s

Característica 7

NTSC: 1/30~1/100000s

Característica 8

Minimum Illumination

Característica 9

0.04Lux/F1.85, 30IRE, 0Lux IR on

Característica 10

More than 65dB

Característica 11

Up to 20m (66feet)

Característica 12

IR On/Off Control

Característica 13

Auto / Manual

Característica 14

Fixed lens / Fixed iris

Característica 15

Focal Length

Característica 16

3.6mm (6mm Optional)
