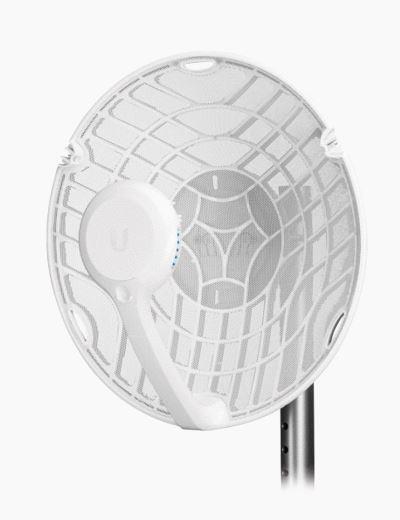

Ubiquiti AF60 — Radio de Backhaul de alta capacidad, tecnología airFiber hasta 1 Gbps, 60 GHz con failover en 5 GHz, con antena integradas.

Características principales

• AF60
• Dimensions
• 413 x 413 x 320 mm
• (16.26 x 16.26 x 12.60″)
• Weight
• Without Mount
• With Mount
• 1.4 kg (3.09 lb)
• 1.8 kg (3.97 lb)
• Enclosure
• Aluminum, UV-stabilized Polycarbonate
• Antenna Gain
• 5 GHz
• 60 GHz
• 11 dBi
• 38 dBi
• Networking Interface
• (1) 10/100/1000 Mbps Ethernet Port
• Max. Power Consumption
• 11W
• Power Method
• Passive PoE, Pins 4, 5+ and 7, 8-
• Power Supply
• 24VDC, 0.5A Gigabit PoE Adapter (Included)
• Voltage Range
• +22 to +26VDC
• LEDs
• Power/Ethernet/5G/60G/GPS
• Mounting
• Pole Mount (Included)
• Wind Loading
• 420 N @ 200 km/h
• (94.4 lbf @ 125 mph)
• Wind Survivability
• 200 km/h
• (125 mph)
• ESD/EMP Protection
• ± 24kV Contact/Air
• Operating Temperature
• -40 to 60° C
• (-40 to 140° F)
• Operating Humidity
• 5 to 95% Noncondensing
• Certifications
• FCC, IC, CE
• SYSTEM
• Maximum Throughput
• 1.8 Gbps
• Maximum Range
• 2+ km
• Encryption
• WPA2-PSK (AES)/WPA2 Enterprise
• OS
• airOS GP
• RADIO
• Max. Conducted TX Power
• 5/60 GHz Combined
• 25 dBm
• Channel Bandwidth
• 60 GHz
• 5 GHz
• 2160 MHz
• 20/40/80 MHz
• OPERATING FREQUENCY (MHZ)
• US/CA
• U-NII-1
• U-NII-3
• 5150 – 5250
• 5725 – 5850
• 57,000 – 66,000
• Worldwide
• 5180 – 5875
• 57,000 – 66,000
• MANAGEMENT RADIO (MHZ)
• Worldwide
• 2412 – 2472
• US/CA
• 2412 – 2462

Característica 1

413 x 413 x 320 mm

Característica 2

(16.26 x 16.26 x 12.60″)

Característica 3

Without Mount

Característica 4

1.4 kg (3.09 lb)

Característica 5

1.8 kg (3.97 lb)

Característica 6

Aluminum, UV-stabilized Polycarbonate

Característica 7

Antenna Gain

Característica 8

Networking Interface

Característica 9

(1) 10/100/1000 Mbps Ethernet Port

Característica 10

Power Consumption

Característica 11

Power Method

Característica 12

Passive PoE, Pins 4, 5+ and 7, 8-

Característica 13

Power Supply

Característica 14

24VDC, 0.5A Gigabit PoE Adapter (Included)

Característica 15

Voltage Range

Característica 16

+22 to +26VDC
